Table Top Electric Flat Induction
$0.00
- Model No: HA-NEFI1 6
Product Details
Table top electric fry top with 600 mm depth and 3.9 kW Steady-State Surface heater (SSS) Usable for contact grilling and starch cooking.
Made of AISI 304 with 1.2 mm top thickness, equipped with temperature control, AISI 420 griddle with 16 mm thickness and oil drawer.
CONSTRUCTION
- External construction entirely with AISI 304.
- Top panel with 1.2 mm thickness. Orbital surface finishing: resistant toward scratches.
- Side panel with 1.2 mm deep-drawn surface.
- Front panel with 0.8 mm deep-drawn surface.
- Top panel with Orbital scratch-preventing finish.
- Rubber leg with 40 mm height
- Connector between Amicus product on the back.
- IPX4 water protection level.

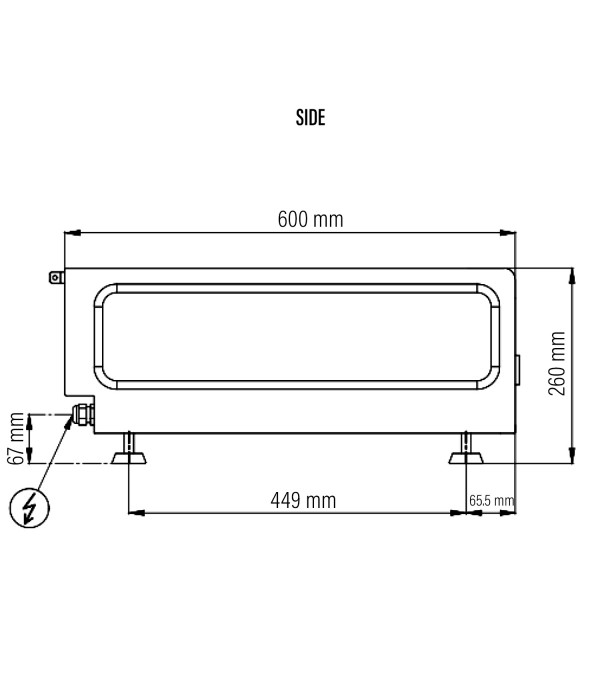

External Dimensions
- Width : 380 mm
- Depth : 600 mm
- Height : 260/312 mm
Cooking Surface
- Cooking zones : 310 x 480 mm
- Heating zones : 1
- Control type : Modulating temperature control
Electrical Supply Data
- Total connected load : 3.9 kW
- Voltage : 230V, 1NPE AC / 50-60 Hz
- Recommended fuse : 20 A (slow)
Connections
- Water : N/A
- Drain : N/A
- Heat & Steam Emissions
- Direct heat emission : 1.3 kW
- Latent heat emission : 1.6 kW
- Steam emission : 2.3 kg/h
PACKAGING DATA
- Width : 410 mm
- Depth : 630 mm
- Height : 432 mm
- Volume : 0.11 m3
WEIGHT
- Net Weight : 33 kg
- Gross Weight : 37 kg
