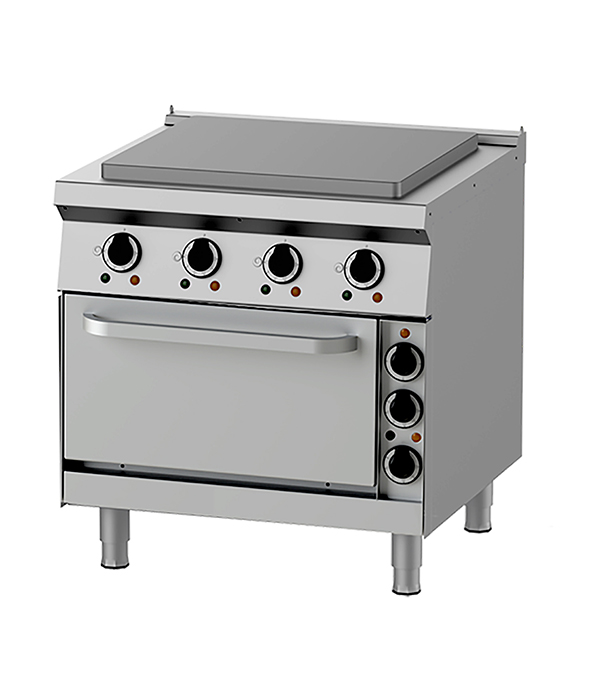

Electric - Hot Top- 8-75 with Static 2/1 GN Electric Oven
$0.00
- Model No: HA-NEHT 8-75 OV
Product Details
Modular electric hot top with 750 mm depth, powered with 4 x 3.7 kW cast iron heaters. Static 2/1 GN electric oven with 6 kW heater. Usable for contact grilling and starch cooking. Oven module usable for roasting and baking. Made of AISI 304 with 1.5 mm top thickness, griddle is made of 20 mm thick AISI 420, knife steel, that prevent rust and deliver good thermal conductivity. Powered with SSS (Steady-State Surface) that deliver superior temperature distribution and durability. Oven is sized for 2/1 GN with reflective AISI cavity for superior heat transfer.
- Powered with 4 x 3.7 kW cast iron heating elements.
- Static 2/1 GN electric oven is powered with 6 kW incoloy heater 2/1 GN cavity and reflective AISI chamber to improve thermal efficiency. Designed with deep-drawned chamber that requires no gasket for maintenance.
- Removable flush griddle constructed of Molybdenum steel (16Mo5) thickness of 18 mm, designed for very high temperature.
- 4 heating zones that heats up to 420 degree Celcius.
- Cooking Surface- Cooking zones : Hot Top = 620 x 500 mm, Oven = 575 x 666 mm
- Heating zones : 6
- Control type : Hot top: Modulating temperature control
- Oven: Modulating temperature control
- Electrical Supply Data- Total connected load : 20.8 kW
- Voltage : 400V, 3NPE AC /50-60Hz
- Recommended fuse : 20 A (slow)
- Net Weight : 165 kg
- Dimensions: 800 x 750 x 850/870 mm
