Electric - Hot Top- 8-90 OV
$0.00
- Model No: HA-NEHT 8-90 OV
Product Details

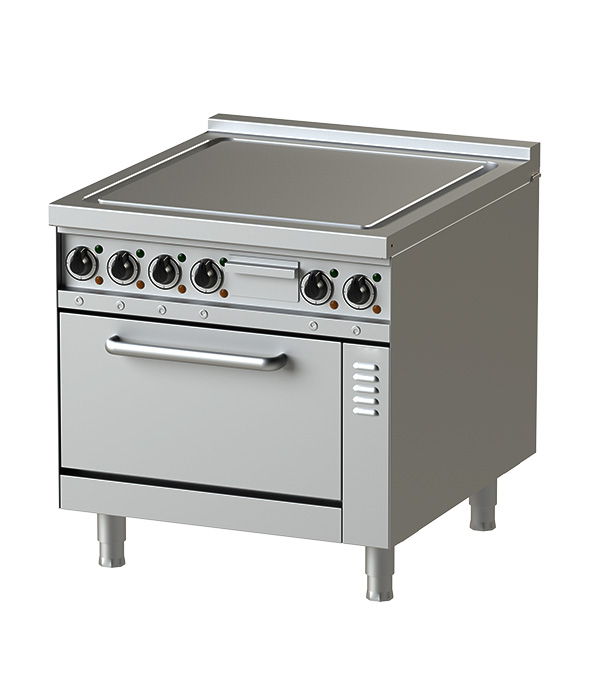

Modular electric hot top with 900 mm depth,powered with 4 sets of 3.7 kW square incoloyheaters. Static 2/1 GN electric oven with 6 kWincoloy rod heater.Usable for boiling, steaming, frying, braising, sim-mering and steam frying.Made of AISI 304 with 2 mm top thickness, griddleis removable for service and flush fitted to the topsurface. Griddle is made of 18 mm thick Molybde-num steel (16Mo5). Temperature can reach up to450 degree Celcius. Oven is sized for 2/1 GN withreflective AISI cavity for superior heat transfer.
- Cooking Surface- Cooking zones : Hot Top : 650 x 680 mm,
- Oven : 575 x666 mm
- Heating zones: 6Control type: Modulating temperature control
- Electrical Supply DataTotal connected load: 20.8 kW
- Voltage: 400V, 3NPE AC /50-60Hz
- Recommended fuse: 32 A (slow)
- Net Weight : 181 kg
- Dimensions: 800 x 900 x 850/880 mm
