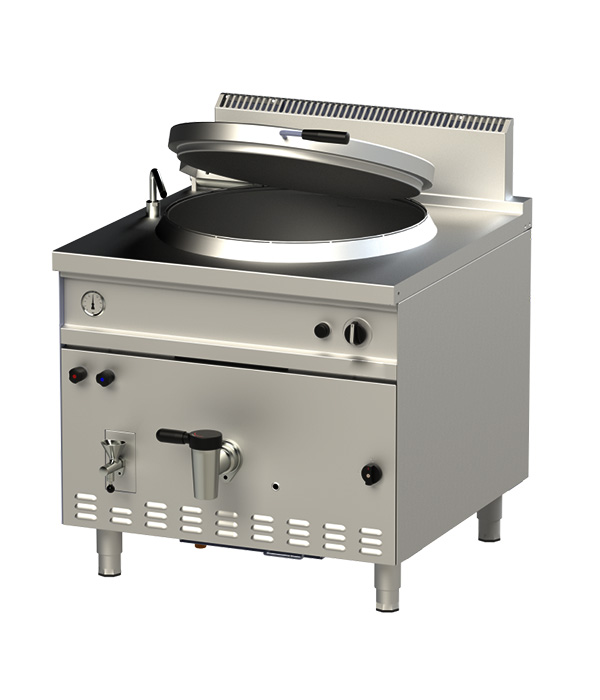

Gas - Indirect Boiling Pan- 150L

$0.00

Model No: HA-NGBP 150

Product Details

Modular indirect gas boiling pan with 150 liters capacity and 28 kW tubular burners. Usable for cooking liquid food, vegetable, starch meal, sauces soups, or acidic dishes. Made of AISI 304 with 2 mm top thickness, boiling kettle is made of 2 mm thick AISI 316 bottom and 2 mm thick AISI 304 sleeve. Indirectly heated to improve temperature distribution during boiling and prolong lifetime of the kettle.

Powered with 28 kW chrome-plated tubular burners.
Indirectly heated with 150 liters capacity. Distilled water is manually filled through the funnel on the front panel.
Lid is suspended with safe multi-step hinge to prevent operational injury.
Drain tap outflow made of AISI 304 with 2” diameter and red-colored indicator when opened.
Front panel includes manometer. Pressure in the kettle jacket is operating below 0.55 bar.
Piezzo ignition system with rubber cover. • Equipped with flame failure device.
Cooking Surface- Cooking zones : 150 liters, Ø 630 mm
Gas Power Rating- Heat input total : LPG/Natural Gas 28 kW
No. of burners : 3
Control type : High - low power control
Gas type options : LPG G30, G31
Natural Gas G20, G25
Net Weight : 154 kg
Dimensions: 900 x 900 x 850/1080 mm
